Project for pivot plant in Bulgaria

“From a simple piece of paper in the middle of SIMA 2017 in Paris, we developed a huge and unbelievable project. “

Thanks to the collaboration with Cornell technician and our specialists we projected and created a new irrigation system model to provide irrigation from a lake in Bulgaria.

Using a Valley Pivot irrigation system, the pumps are set two each in series, with a capacity of 4750 GPM/ 300 l/s, and pressure of 12 bar. Using Iveco 6 Cly Turbo engines, the pumps discharge into 16” / 400mm lines.

Required performances:

• Capacity: 300 l/s
• Pressure: 12 bar
• Details: 2 pipe lines with diameter DN400
• Suction point: LAKE

Solution:

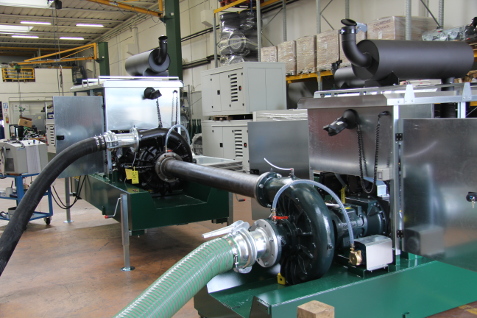

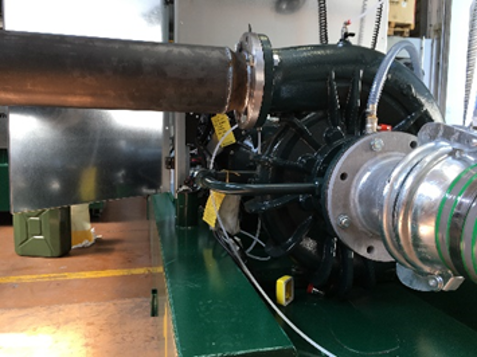

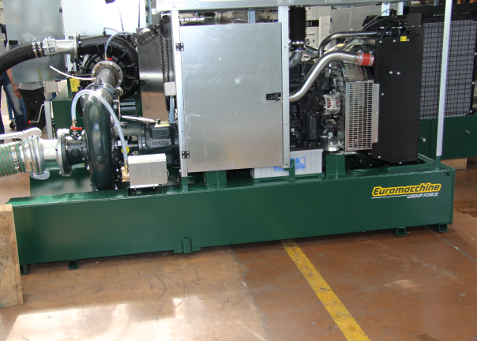

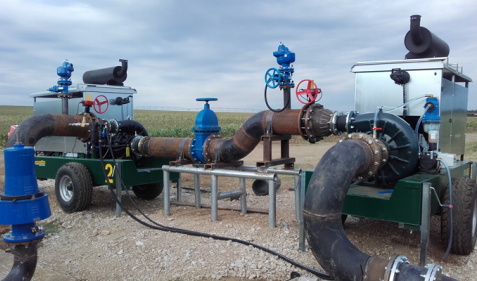

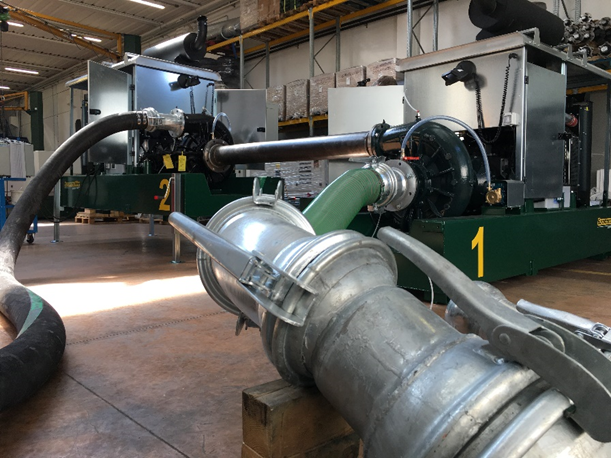

• 2 pump station with 2 CORNELL PUMP 6HH in Serie
• Engine: IVECO 6 CYL TURBO
• Each pump station is composed with 2 pump in series
